DH-S Ti64 powder
Explore powder properties and typical specimen performance.
View Ti64 powder
Trial

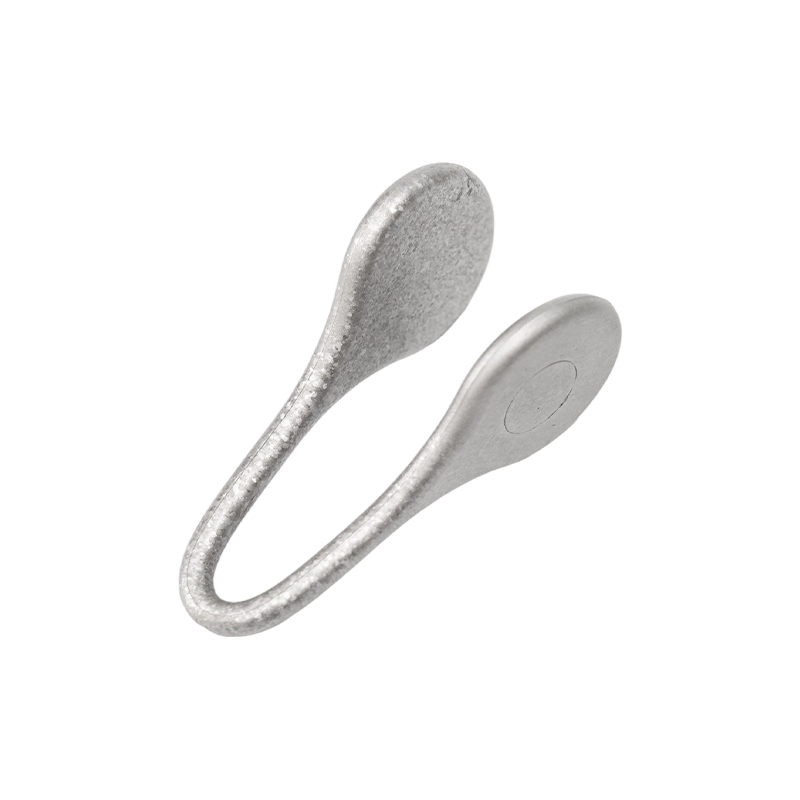

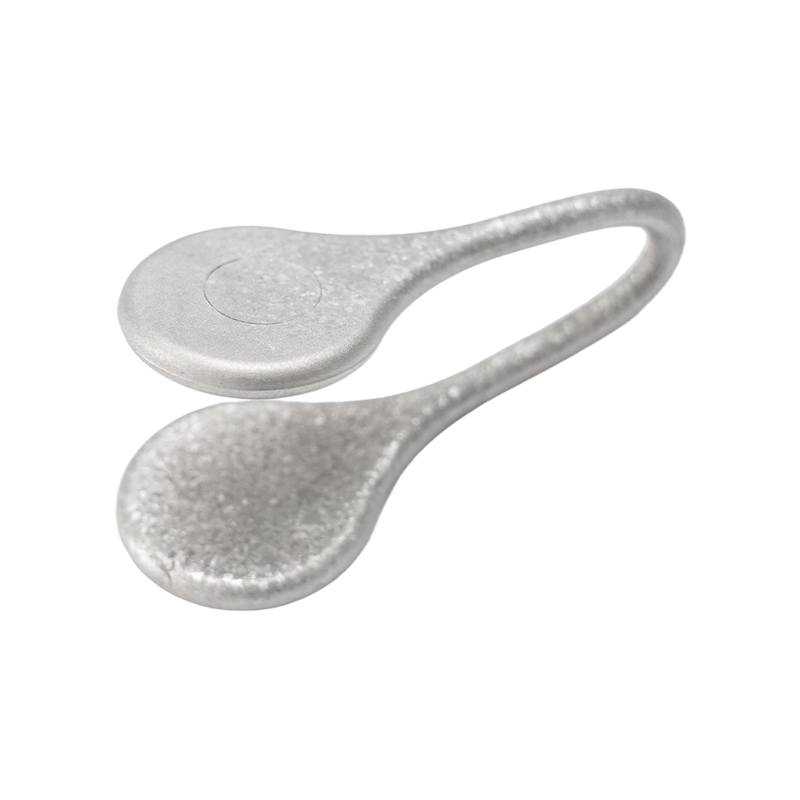

Titanium Alloy Test Specimen
KYHE uses MIM test specimens to evaluate the mechanical behavior of titanium powder batches after processing. The specimen shown is made from TC4 titanium alloy.
A specimen connects powder selection to a defined manufacturing and test route. When comparing materials, identify the specimen geometry, processing conditions, post-treatment and tensile-test method.
Contact the team to discuss specimen evaluation for your batch or application. Specimen results support material evaluation; final-part performance depends on geometry and manufacturing conditions.
Material information
| Property | Value |
|---|---|
| Material | TC4 titanium alloy |
| Dimensions | 19.6 × 97.4 × 3.2 mm |
| Weight | 10.81 g |
Specify gauge geometry and the required test method when requesting specimen evaluation.
| Property | Typical value |
|---|---|
| Tensile strength | 950 MPa |
| Yield strength | 850 MPa |
| Elongation | 15% |
| Density | 4.35–4.45 g/cm³ |
| Hardness | 350–400 HV |
| SST (salt-spray test duration) | >240 h |
Typical specimen properties are provided for material selection. Results depend on specimen preparation, processing, post-treatment and test conditions. Mechanical and corrosion-test acceptance criteria are agreed for each application.
Discuss this material
Share your application, material specification and estimated quantity. Our team can discuss supply, sample evaluation and any additional technical work.
